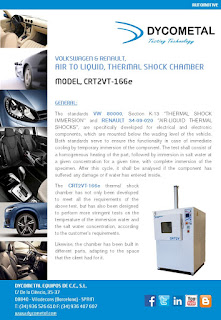

AIR TO LIQUID THERMAL SHOCK CHAMBER ACC. WITH VW 8000 AND RENAULT 34-09-020, MODEL: CRT2V-166e

The standards VW 80000, Section K-13 "THERMAL SHOCK IMMERSION" and RENAULT 34-09-020 "AIR-LIQUID THERMAL SHOCKS", are specifically developed for electrical and electronic components, which are mounted below the wading level of the vehicle. Both standards serve to ensure the functionality in case of immediate cooling by temporary immersion of the component. The test shall consist of a homogeneous heating of the part, followed by immersion in salt water at a given concentration for a given time, with complete immersion of the specimen. After this cycle, it shall be analysed if the component has suffered any damage or if water has entered inside.

The CRT2VT-166e thermal shock chamber has not only been developed to meet all the requirements of the above test, but has also been designed to perform more stringent tests on the temperature of the immersion water and the salt water concentration, according to the customer's requirements.  Likewise, the chamber has been built in different parts, adapting to the space that the client had for it.

If you want more information, you can contact us through our email: comercial@dycometal.com  or on our website: www.dycometal.com .

DYCOMETAL company with more than 35 years of experience in the development of chambers for simulation of environmental tests, offers its customers the THERMAL SHOCK AIR TO LIQUID CHAMBERS to perform such tests.

TEMPERATURE TEST CHAMBER FOR HEAVY SAMPLES IN ELECTRONICS, MODEL: CETM-25/1296e

The electronic samples can be small microchips or large iron blocks, but the size does not matter, as they have to be tested in sub-zero and above-zero temperature conditions to verify their thermal resistance, whether they are small samples or large, heavy samples.

The design of the thermal test chamber CETM-25/1296e is based on the premise of being able to test large heavy specimens up to 750 kg. Its horizontal design allows the specimens to be loaded by means of a bridge crane, with a door large enough for the specimens to be placed safely. Its ergonomic design allows the chamber to be controlled from the side of the chamber, and the front wall pass-throughs allow access to the customer's own sampling probes to be positioned on the sample.

If you want more information, you can contact us through our email: comercial@dycometal.com or on our website: www.dycometal.com.

DYCOMETAL company with more than 35 years of experience in the development of chambers for simulation of environmental tests, offers its customers the TERMPERATURE TEST CHAMBER FOR HEAVY SAMPLES to perform such tests.
