CLIMATIC CHAMBER WITH SPECIAL AIR FLOW DESIGN, CCK-25/519e

In many cases the samples do not allow the correct passage of air to be able to condition them, due to their size, geometry, sample support, etc. This is when our engineering and design comes into play, analysing the best air flow option and redesigning the chambers in such a way as to guarantee homogeneity and uniformity, as well as meeting the needs of gradients and temperature and humidity ranges.

As in the case of our CCK-25/519e model, a system designed for power electronic components with a total weight of up to 250 kg and racks mounted on a fairly solid sample holder structure, which prevented air from passing through. The chamber was redesigned in terms of airflow, manufactured with a reinforced floor and always complying with the customer’s gradient specifications, taking into account a maximum dissipation of 4 kW and 130 kg of steel.

For more information, please contact us by email: comercial@dycometal.com or on our website: www.dycometal.com .

DYCOMETAL, a company with more than 40 years of experience in the development of simulation chambers for environmental testing, offers its customers ENVIRONMENTAL TESTING SOLUTIONS ADAPTED TO THEIR NEEDS.

CLIMATIC GENERATOR FOR TENSILE TESTS, CCKg-30/45

Universal tensile testing machines are often used for tensile testing and the tests often require a thermal or climatic conditioning system to perform the tests under controlled temperature conditions. These machines are usually manufactured with a liquid nitrogen cooling system, which is a costly system to maintain in the long run, as nitrogen is a consumable. This is why many customers ask us for compressor cooling systems, in order to reduce costs over time.

Such as our CCKg-30/45 system, a system built in two parts: an external climatic generator and a test enclosure designed specifically for the customer’s traction machine. The system was also manufactured entirely in stainless steel at the customer’s request.

For more information, please contact us by email: comercial@dycometal.com or on our website: www.dycometal.com .

DYCOMETAL, a company with more than 40 years of experience in the development of simulation chambers for environmental testing, offers its customers ENVIRONMENTAL TESTING SOLUTIONS ADAPTED TO THEIR NEEDS.

WALK-IN CLIMATIC CHAMBER FOR BATTERY TESTING, CCK-25-7524mT

The rise of batteries as an exclusive source of energy for electric cars, telephone systems, tablets, etc. has greatly boosted the use of these batteries, and their correct operation in adverse temperatures and humidity is essential. The validation of these batteries is carried out in climatic chambers. In this type of tests, the risk of battery failure must be considered, so the climatic chamber, as well as the laboratory, must take into consideration a series of safety measures against the risk of fire or explosion.

Our CCK-25/7524mT model has been equipped with all the maximum safety measures to comply with the most extreme safety levels, as well as with the extreme climatic tests indicated by the customer, with temperature and humidity control. Its visitable design with a volume of 7524 litres adapts to the customer’s existing space, and its advanced control allows precision regulation of both the safety systems and the chamber’s control parameters.

For more information, please contact us by email: comercial@dycometal.com or on our website: www.dycometal.com .

DYCOMETAL, a company with more than 40 years of experience in the development of simulation chambers for environmental testing, offers its customers ENVIRONMENTAL TESTING SOLUTIONS ADAPTED TO THEIR NEEDS.

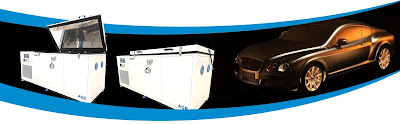

FORCED AIR CHEST FREEZER FOR BATTERY TESTING, ACR-40/480

Within the quality control of low-voltage batteries, it is necessary to carry out freezing tests down to -40ºC in order to analyse the performance of new and old batteries, so that a complete study of their operation and performance under extreme temperature conditions can be carried out throughout their useful life, guaranteeing their quality.

The ACR-40/480 chest freezer has been designed to carry out freezing tests at -40ºC, in order to verify the behaviour of the batteries under extreme conditions. Its 480-litre interior enclosure with a floor reinforced up to 700 kg, allows a large number of batteries to be tested simultaneously. The position of the door has been positioned on the right side of the chamber and the control on the right, according to the customer’s indications. 2 wall access-ports on the right side of the equipment for the insertion of temperature recording probes. The system also has an air flow speed control, as well as a sensor to read the air flow. All this is recorded through an independent recording system with remote connection to a PC via Ethernet port.

For more information, please contact us by email: comercial@dycometal.com or on our website: www.dycometal.com .

DYCOMETAL, a company with more than 40 years of experience in the development of simulation chambers for environmental testing, offers its customers ENVIRONMENTAL TESTING SOLUTIONS ADAPTED TO THEIR NEEDS.

FORCED AIR CIRCULATION OVEN FOR ELECTRONIC & ELECTRIC COMPONENTS (LED lights, etc): AFAMB-80/4976

Suppose we have some large electrical samples, with different internal electronic components and we want to evaluate their behaviour against extreme heat (+50 ºC), given that they are components that are going to be outdoors. In addition, the samples will have a dissipation capacity between 1 and 5 kW. Where could this test be carried out?

Our solution, our large capacity AFAMB-80/4976 modular oven model, with a working temperature from +10 ºC to +80 ºC, and with a system that allows the energy inside the chamber to be dissipated, maintaining a constant temperature when the samples are dissipating energy. Access to the samples is through a wide door with a viewing window to see the test. The control allows remote monitoring and recording of temperature values via the TCP/IP ethernet communications port and associated system software.

For more information, please contact us by email: comercial@dycometal.com or on our website: www.dycometal.com .

DYCOMETAL, a company with more than 40 years of experience in the development of simulation chambers for environmental testing, offers its customers ENVIRONMENTAL TESTING SOLUTIONS ADAPTED TO THEIR NEEDS.

CLIMATIC TEST CHAMBER FOR BUILDING MATERIALS, CCK-40/512T

There are numerous testing standards for building materials, ranging from curing standards, freeze-thaw, variable climate, carbonation, etc. All of them have different environmental test conditions depending on the type of product and its application, since the resistance of the materials for storage, use and useful life against the most adverse atmospheric conditions on the planet must be guaranteed. There is no chamber on the market that allows all the tests to be carried out in a single chamber, but we can combine many of them to be able to carry out as many tests as possible.

Like our CCK-40/512T model which has been designed with the peculiarity of an interior volume made to measure for the client, with an extended temperature range down to -40 ºC to be able to carry out tests where temperatures are more extreme and with the capacity to carry out curing tests where a high percentage of relative humidity is required.

For more information, please contact us by email: comercial@dycometal.com or on our website: www.dycometal.com .

DYCOMETAL, a company with more than 40 years of experience in the development of simulation chambers for environmental testing, offers its customers ENVIRONMENTAL TESTING SOLUTIONS ADAPTED TO THEIR NEEDS.

CLIMATIC CHAMBER FOR TESTING THERMAL INSULATION PRODUCTS IN BUILDINGS, CCK-0/81

One of the most commonly used elements in building construction today are insulating panels due to their speed of assembly, their insulating capacity and their rapid manufacture. However, in order to guarantee their durability over time in outdoor conditions, there are various standards to verify the resistance of materials to climatic conditions. One such standard is EN 1604, a standard that specifies equipment and procedures for evaluating dimensional changes of test specimens under specified conditions of temperature, relative humidity and duration of exposure.

Our bench-top chamber model CCK-0/80 allows for the high temperature and high humidity conditions required by the standard, when the customer wants to perform scale tests on small specimens. The chamber has a high quality stainless steel interior finish and a measuring system based on a special capacitive probe that allows measurement over a wide dew point range.

For more information, please contact us by email: comercial@dycometal.com or on our website: www.dycometal.com .

DYCOMETAL, a company with more than 40 years of experience in the development of simulation chambers for environmental testing, offers its customers ENVIRONMENTAL TESTING SOLUTIONS ADAPTED TO THEIR NEEDS.

CLIMATIC CHAMBER FOR DAMP-HEAT CYCLES IN PHOTOVOLTAIC INDUSTRY, CCK-AMB/3542T

The IEC 61215 standard is one of the standards used for the qualification of the quality of solar panels with a part dedicated to climatic tests to verify the performance and durability of solar panels. Specifically, the damp-heat cycle is used to determine the module’s ability to withstand the effects of long-term moisture penetration. This test consists of a climatic test at +85 °C and 85 % hr for 1000 hours.

The climatic chamber CCK-AMB/3452T is a climatic chamber developed for these demanding tests at high temperature and high humidity. Its volume allows several solar panels to be tested in parallel thanks to its reinforced floor. The system is made of high quality stainless steel both externally and internally, to withstand the demands of the tests for a long time.

For more information, please contact us by email: comercial@dycometal.com or on our website: www.dycometal.com .

DYCOMETAL, a company with more than 40 years of experience in the development of simulation chambers for environmental testing, offers its customers ENVIRONMENTAL TESTING SOLUTIONS ADAPTED TO THEIR NEEDS.

TEMPERATURE TEST CHAMBER FOR THE RAILWAY INDUSTRY, CETM-40/300T

The new digital revolution, transport safety and decarbonisation are the major challenges facing the rail sector today, and these technological challenges are being met to ensure up-to-date rail mobility that provides a better passenger experience. To this end, trains, trams and metros have new safety, surveillance and infotainment systems that have to be tested for climatic resistance to extreme temperatures in thermal test chambers, such as our standard model CETM-40/300T.

The CETM-40/300T model is a standard volume model in our portfolio, but in this case, the client wanted to have a little more power, compensating the energy generated by their equipment both in stabilities and in the cooling and heating ramps, so the power of the equipment was slightly increased. The camera also had a programmable logic output, so that the camera could be controlled remotely by the client’s own system.

For more information, please contact us by email: comercial@dycometal.com or on our website: www.dycometal.com .

DYCOMETAL, a company with more than 40 years of experience in the development of simulation chambers for environmental testing, offers its customers ENVIRONMENTAL TESTING SOLUTIONS ADAPTED TO THEIR NEEDS.

FORCED AIR HETING OVEN FOR TESTING MOTORCYCLE COMPONENTS, AFA-200/640

Within the automotive sector, we must not forget motorbikes, a type of vehicle that we see every day and which, despite being smaller than other vehicles, has to pass environmental tests that are just as demanding as larger vehicles. All components have to withstand demanding environmental conditions.

The AFA-200/640 oven has been manufactured according to the customer’s needs in terms of interior space, taking into account the size of the samples, as well as the number of samples that the customer wanted to test in parallel. Its temperature control up to +200ºC allows testing on components that have to withstand high temperatures during use. The equipment was built on a steel structure to give a better ergonomics to the design. The control is based on a microprocessor and a test recording system to be able to make quality reports.

For more information, please contact us by email: comercial@dycometal.com or on our website: www.dycometal.com .

DYCOMETAL, a company with more than 40 years of experience in the development of simulation chambers for environmental testing, offers its customers ENVIRONMENTAL TESTING SOLUTIONS ADAPTED TO THEIR NEEDS.

CLIMATIC TEST CHAMBER TO BE COMBINED WITH VIBRATION SYSTEM FOR AUTOMOTIVE INDUSTRY. MODEL: CCK-50/1728Tv

Throughout their lifetime, vehicle parts not only face adverse environmental conditions, but also undergo vibrations during use. This is why climatic chambers combined with vibration allow both tests to be combined in a single piece of equipment, so that the tests are as realistic as possible to guarantee the correct functioning of the samples during their use in vehicles. Environments from -40 ºC, with different types of vibrations (random, shock, …) will allow to detect if there is any damage during driving.

The CCK-50/1728Tv model has been developed with an interior volume of 1728 litres, dimensions 1200 x 1200 x 1200 mm, and has been prepared to combine the chamber with the vibration system both horizontally and vertically, in order to be able to carry out the most demanding tests. Its lifting system allows a fine adjustment with the vibrator and its wheels and rails favour the lateral movement of the chamber to be able to move the equipment laterally.

For more information, please contact us by email: comercial@dycometal.com or on our website: www.dycometal.com .

DYCOMETAL, a company with more than 40 years of experience in the development of simulation chambers for environmental testing, offers its customers ENVIRONMENTAL TESTING SOLUTIONS ADAPTED TO THEIR NEEDS.

NEW CATALOGUE OF ENVIRONMENTAL SIMULATION EQUIPMENT FOR THE DEFENCE INDUSTRY

Presentamos un nuevo catálogo de nuestros productos destinado específicamente para el sector de defensa, militar o aeroespacial. Dentro de los diferentes campos de aplicación de los ensayos ambientales, uno de los pioneros en la realización de los ensayos ha sido el sector de defensa. Todos los productos y componentes en la industria de defensa o defensa deben ser ensayados bajo condiciones extremas para verificar su robustez y fiabilidad a lo largo de su vida útil, de manera que se pueda garantizar la seguridad en su uso. Normas como las MIL-STD o RTCA, establecen unas especificaciones concretas en los ensayos ambientales.

Nuestro nuevo catálogo presenta soluciones concretas para este sector como cámaras de ensayos climáticos o térmicas, choque térmico, combinadas con vibración, estrés, corrosión, etc. Todo tipo de soluciones para garantizar la fiabilidad de los productos y materiales.

CLIMATIC TEST CHAMBER FOR COSMETIC INDUSTRY, CCK-25/48T

The cosmetic products that we use on a daily basis are not exempt from strict quality control through climatic tests. These tests are used to evaluate the behaviour of chemical components and packaging throughout the product’s service life.

The CCK-25/48T climatic chamber is a standard chamber with a small volume of 48 litres for testing several small samples in parallel. The temperature range of the unit is from -25ºC to +100ºC with humidity control from 10% to 95% rh. The equipment has a column design to occupy less space, positioning the technical group in the upper part, so that it occupies the least possible space in the laboratory. The chamber has a base with wheels for ergonomics and to position the chamber comfortably in its final location. Control is via a user-friendly touch screen and remote control software. A small device for an everyday use.

For more information, please contact us by email: comercial@dycometal.com or on our website: www.dycometal.com .

DYCOMETAL, a company with more than 40 years of experience in the development of simulation chambers for environmental testing, offers its customers ENVIRONMENTAL TESTING SOLUTIONS ADAPTED TO THEIR NEEDS.



TEMPERATURE TEST CHAMBER FOR HIGH VOLTAGE MATERIALS, CETM-70/648T

The electricity that reaches us at home is such a common element that we sometimes forget that this energy reaches us through an external network subjected to the inclemency of the weather, from intense cold to high summer temperatures. In order to guarantee the distribution of electrical energy, it is necessary to subject the different elements of the electrical network to the most demanding tests to ensure that the electrical network does not suffer any power cuts, guaranteeing our comfort. This is why high-voltage manufacturers subject the different parts to the most demanding climatic tests in order to guarantee that the components will not suffer any type of deterioration due to climatic changes.

Our CETM-70/648T model has been designed to comply with the most demanding temperature tests. With a temperature range from -70ºC to +150ºC, the parts will be subjected to the most abrupt changes, verifying their correct operation. The chamber has been equipped with two reinforced trays to be able to introduce as many parts as possible, adapting to the customer’s production needs. Robust equipment to guarantee comfort in our homes.

For more information, please contact us by email: comercial@dycometal.com or on our website: www.dycometal.com .

DYCOMETAL, a company with more than 40 years of experience in the development of simulation chambers for environmental testing, offers its customers ENVIRONMENTAL TESTING SOLUTIONS ADAPTED TO THEIR NEEDS.

AFA-400/768, AEROSPACE HIGH TEMPERATURE TEST OVEN

The aerospace industry is one of the most demanding when it comes to testing the different components to be installed in aircraft and space shuttles, this is essential to guarantee the resistance of the materials to the extreme conditions that the materials will encounter during their use. Our standard equipment can be modified to meet more demanding conditions than those offered as standard. Thanks to our technical department, we can fully customise the standard equipment to suit the real needs of the customer.

The AFA-400/768 oven is a modification of our standard oven model with added safety measures, programming system and registration software. In addition, the door has been painted in the customer’s corporate colours for a more corporate image. High temperature for high needs.

For more information, please contact us by email: comercial@dycometal.com or on our website: www.dycometal.com .

DYCOMETAL, a company with more than 40 years of experience in the development of simulation chambers for environmental testing, offers its customers ENVIRONMENTAL TESTING SOLUTIONS ADAPTED TO THEIR NEEDS.

CM 0-16670mT, PHARMACEUTICAL STABILITY CHAMBER WITH REDUCED INSTALLATION ACCESSIBILITY

Sometimes existing buildings have limitations for the installation of large volume cameras. Narrow corridors, stairs, reduced installation area, lack of lift,…are different elements that have to be taken into account for a correct installation of the climatic chambers in the customer’s location.

In the case of the CM-0/16670mT stability chamber, a special cut had to be made on the panels to facilitate access to the installation area, taking into account the reduced space in the building to be able to install the equipment correctly. From Dycometal, our technical sales department analysed the different alternatives and found the best solution for the installation, guaranteeing the necessary volume required by the client. Search for solutions to the problems.

For more information, please contact us by email: comercial@dycometal.com or on our website: www.dycometal.com .

DYCOMETAL, a company with more than 40 years of experience in the development of simulation chambers for environmental testing, offers its customers ENVIRONMENTAL TESTING SOLUTIONS ADAPTED TO THEIR NEEDS.

TEMPERATURE TEST CHAMBER FOR TESTING ELECTRONIC RACKS IN THE RAILWAY INDUSTRY, CETM-40/1227m

The railway industry is booming, and this translates into increased production and maintenance of trains. Within the electronics of a train, there are power racks that have to be tested under extreme conditions to ensure their correct operation under any temperature conditions.

The CETM-40/1227m model has a vertical configuration to easily introduce a trolley with several racks in parallel, so that they can be tested at the same time reducing times. But then the total power generated by the racks rises, since all the equipment will be dissipating energy, that is why the CETM-40/1227 chamber has been designed to be able to compensate all the energy generated by all the power racks. The control system of the chamber can be configured with the software developed by the client, receiving the temperature and humidity data during the test, as well as allowing the control of the chamber. Powerful equipment for powerful electronics.

For more information, please contact us by email: comercial@dycometal.com or on our website: www.dycometal.com .

DYCOMETAL, a company with more than 40 years of experience in the development of simulation chambers for environmental testing, offers its customers ENVIRONMENTAL TESTING SOLUTIONS ADAPTED TO THEIR NEEDS.

CLIMATIC CHAMBER FOR ELECTRONIC COMPONENTS TESTING, MODEL: CCKMB-0/4715T

In our everyday life there are electronic components that do not suffer the extreme environmental conditions that others are subjected to. Components that surround us such as defibrillators, water meters, etc. Everyday elements that we can see in rooms where the environmental conditions will be moderate, which does not mean that they should not be subjected to climatic tests to verify their behaviour under different temperature and humidity conditions. Components of this type also have to be certified to work under ambient conditions.

Thus, our CCKMB-0/4715T has been developed to have a climatic chamber with positive temperature conditions (+20 ºC to +60 ºC) and a less extreme humidity control (50% to 90% hr) that allows environmental tests to be carried out on real conditions that the samples will face. Its vertical design allows samples to be easily and conveniently inserted into trolleys, allowing a large number of samples to be tested in parallel. The chamber has a double door for direct access to two interior work areas, so that, depending on the test time, the parts can be conveniently removed without disturbing the test conditions of the other parts. All tests can be recorded for later processing and reporting.

For more information, please contact us by email: comercial@dycometal.com or on our website: www.dycometal.com .

DYCOMETAL, a company with more than 40 years of experience in the development of simulation chambers for environmental testing, offers its customers ENVIRONMENTAL TESTING SOLUTIONS ADAPTED TO THEIR NEEDS.

OBSERVATION WINDOW, YES OR NOT?

 The climatic chambers can be built with or without observation window to visualise the samples during the climatic tests, but sometimes the samples are photo-sensitive or the external radiation can influence their behaviour, that is why sometimes the clients ask us for chambers without observation window.

DYCOMETAL installs observation windows as standard for the complete visualisation of the test. The window also includes an interior lighting system. But if you do not wish to have an observation window, please let us know so that we can take it into account in the manufacture of your equipment. In addition, you will receive an associated discount on the cost of the window.

For more information, please contact us by email: comercial@dycometal.com or on our website: www.dycometal.com .

DYCOMETAL, a company with more than 40 years of experience in the development of simulation chambers for environmental testing, offers its customers ENVIRONMENTAL TESTING SOLUTIONS ADAPTED TO THEIR NEEDS.

1055 LITER INSULATED TEST BOX (WORKSPACE) FOR EXTERNAL GENERATOR

 Sometimes our customers of external climatic conditioning systems (thermal or climatic generators) want to be able to change the test box (test enclosure) in order to be able to adapt to other types of test rigs or new samples. This is often the case in the aerospace industry, where different specimen sizes have to be tested under extreme conditions.

Our client was looking for a very versatile drawer to be combined with a new test bench, so it was completely custom-made, starting with the interior measurements: 750 x 800 x 1500 mm (Height x Width x Depth). The drawer had two doors on the wide side of the chamber for easy access to the samples, with the test stopping when the doors were opened. Both doors had tempered glass. Interior light allowed viewing of test specimens.
Multiple connection port on one side, with amphenol connector.

But what really made this test enclosure special was the removable floor made of special resin and machined in several parts to adapt the drawer as required.

This is one of the advantages of an external climatic generator, the need not to be limited to a single test enclosure.

For more information, please contact us by email: comercial@dycometal.com or on our website: www.dycometal.com .

DYCOMETAL, a company with more than 40 years of experience in the development of simulation chambers for environmental testing, offers its customers ENVIRONMENTAL TESTING SOLUTIONS ADAPTED TO THEIR NEEDS.

SSC-2000 NG, SALT SPRAY CHAMBER. CORROSION TESTS FOR DEFENCE INDUSTRY

A reference standard within the environmental tests applied in defence is MIL STD-810, which is a guide on the different environmental tests necessary to apply depending on the type of sample. And within this standard, there is a section referring to corrosion tests in a saline atmosphere. This type of test is carried out in chambers known as salt spray chambers. The samples to be tested can be large batches or large sizes. Our model SSC-2000 NG is the ideal model when a large working space is required.

The SSC-2000 NG has an actual volumetric capacity of 2000 litres, with internal dimensions of 1000 x 2000 x 1000 (H x W x D), with a reinforced floor capable of supporting large batches of samples or heavy samples. The equipment is supplied with support bars to place or hang the samples and a floor protection against impacts. Control is via a colour touch screen with data logging and export capability.

A large volume for a large number of samples.
